Automated Swage Tool

Description

The MSI SW255S integrates our proprietary Element swaging technology into a PLC-controlled automated handling system. Process controls include traverse speed, traverse distance, swage head rotation speed and the number of swage cycles. The robust Element technology swages a wide range of metal band materials down to a smooth, embedded final diameter.

The SW255S is ideal for R&D or manufacturing in a clean room environment. it features an automated handling system that advances product into the swage elements for a uniform, repeatable final swage diameter. This swaging process is upgradable to our automated machine platforms, allowing manufacturers to increase production volumes without redundant validation.

Images / Video

SW255S Automated Marker Band Swager
SW255S Automated Marker Band Swager
Automated Swage Tool
Automated Swage Tool

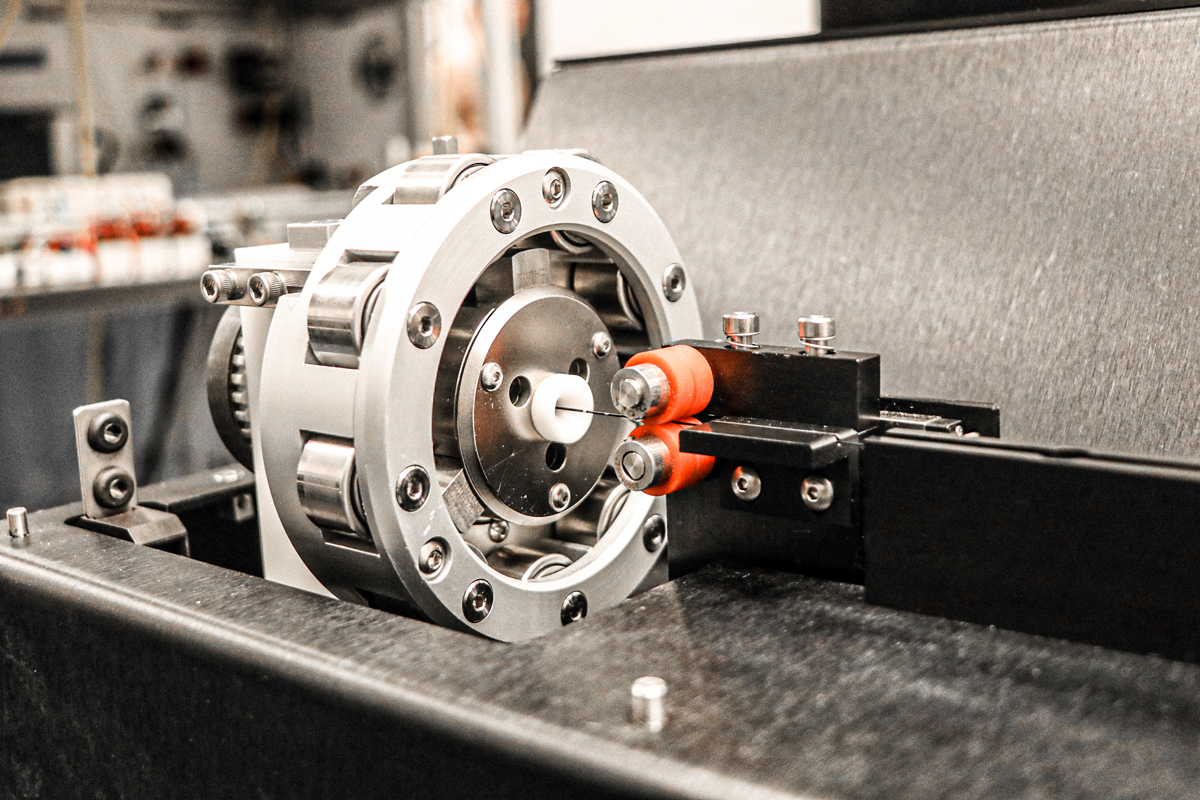

Marker Band placement and swaging
Marker Band placement and swaging
Automated Swage Tool
Automated Swage Tool
Marker Band placement and swaging
Marker Band placement and swaging
Marker Band placement and swaging
Marker Band placement and swaging
Marker Band placement and swaging
Marker Band placement and swaging

Product Features

  • PLC controlled
  • Three element, quick change design
  • Automated handling system
  • Swages a wide range of materials
  • Low maintenance, space-saving design
  • No lubrication required
  • Clean room ready
